| Brand Name: | Kingrail Parts |
| Model Number: | ریل QU80 |
| MOQ: | قابل مذاکره |
| قیمت: | Negotiable |
| Packaging Details: | بسته صادرات استاندارد یا طبق درخواست مشتری |
| Payment Terms: | L/C، D/A، D/P، T/T، Western Union |

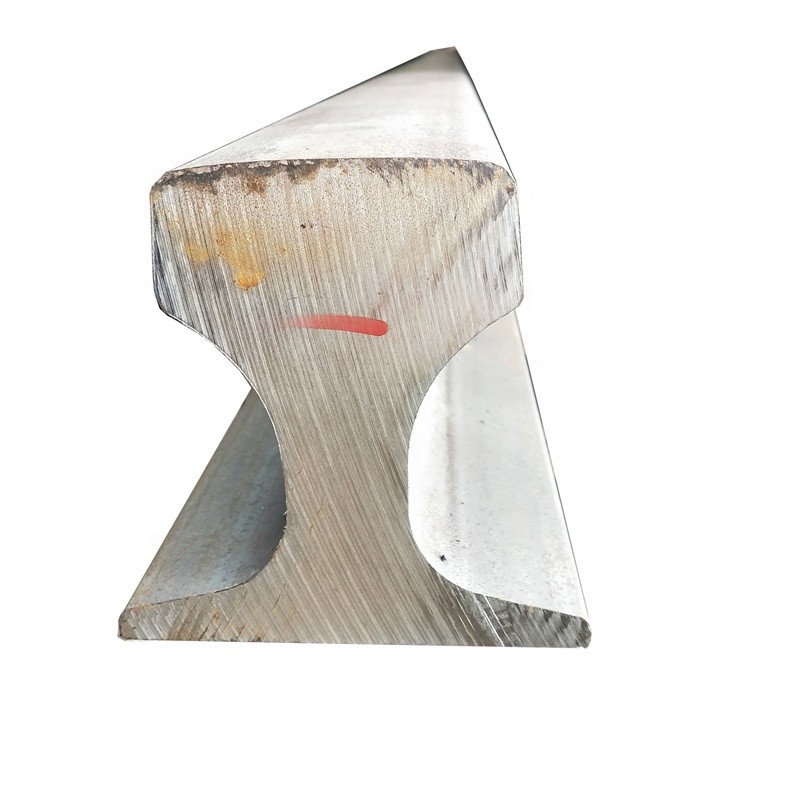

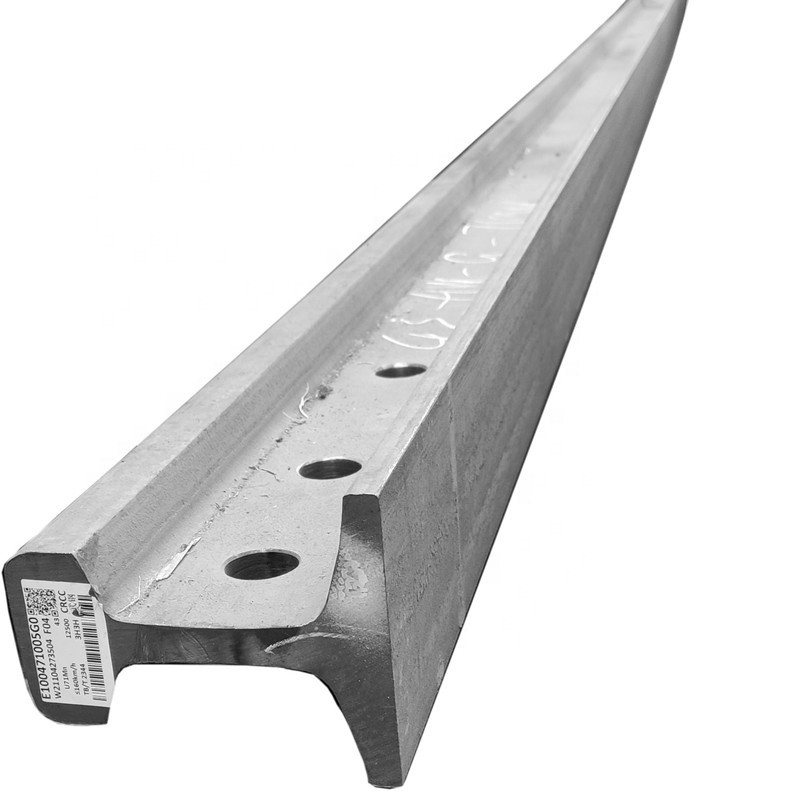

QU80 crane rail can also be used for large-scale projects, container hoisting at docks, etc. It is a special rail for gantry cranes.
As a professional supplier, Kingrail Parts can supply high-quality, competitively priced QU80 rails.
Specifications:
Material: U71Mn
Weight: 63.69KG/M
Length: 12m
Standard: YB/T5055-93
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| QU80 | 63.69 | U71Mn | 12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 80 | 130 | 130 | 32 |
Drawing:
Contact Us
Please contact us for more information and quotes.
|
|
